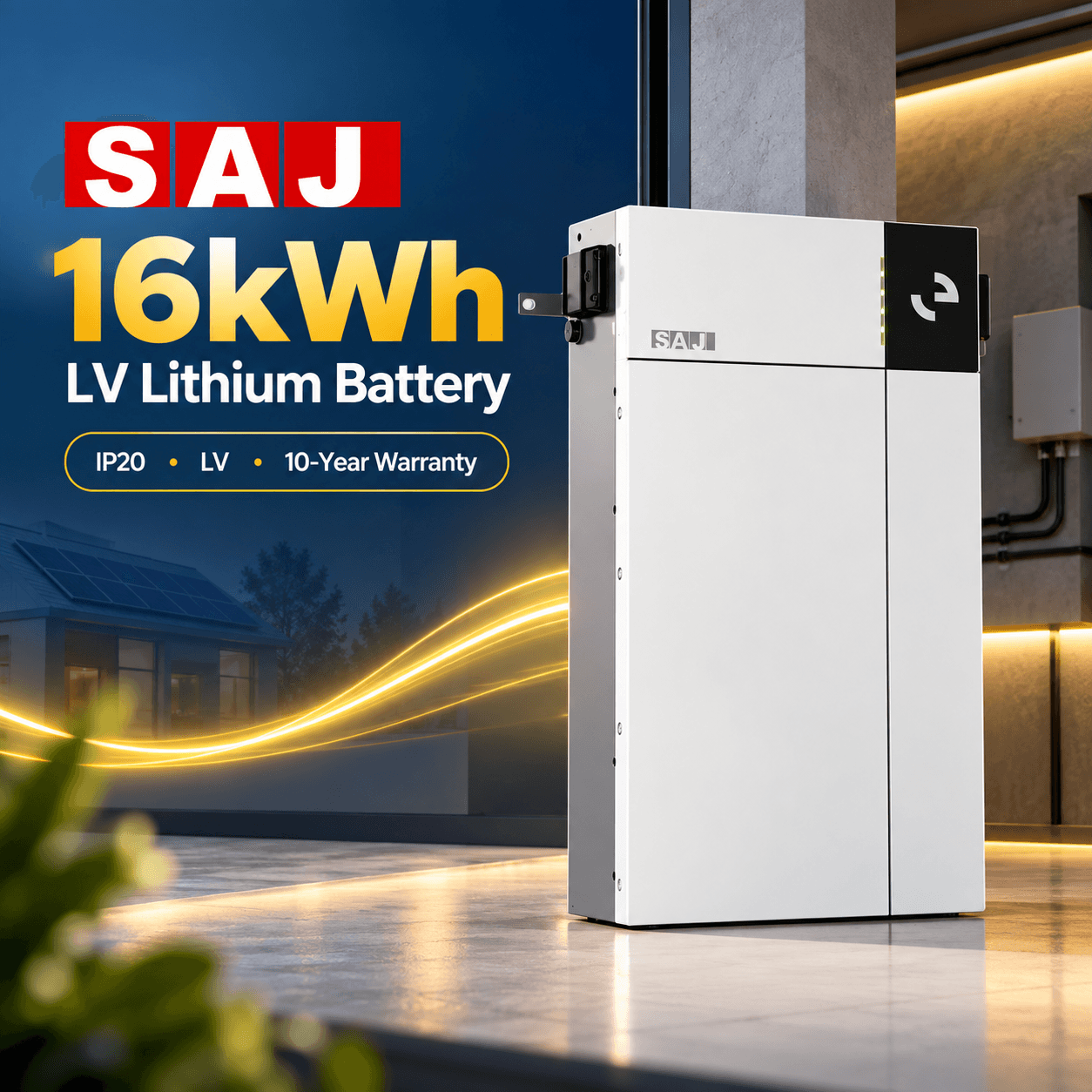

The SAJ EK30 B3 16kWh Low Voltage Battery is a deep cycle, high-capacity LiFePO4 battery engineered for residential and commercial solar energy storage in Pakistan. With 15.2kWh usable energy, 95% recommended depth of discharge and plug-and-play compatibility with SAJ storage inverters, it delivers reliable, long-life backup power with minimal maintenance.
- 16kWh rated energy — 15.2kWh usable (95% DOD)
- LiFePO4 chemistry — 8000+ cycle life at 90% DOD
- Built-in fire protection module for enhanced safety
- Plug and play with SAJ H2 storage inverters
- Expandable to 256kWh with up to 16 units in parallel
- Real-time monitoring and remote upgrade via CAN
- Natural cooling — no fan noise
| Capacity | 16 kWh |
|---|---|
| Type | LiFePO4 Battery |
| Battery Voltage | 51.2V |
| Warranty | 5 / 10 Years |
| Communication | CAN |
| Cycle Life | ≥8000 cycles at 90% DOD |
| Dimensions | 790×430×224 mm |
| Max Charge/Discharge Power | 8kW / 10kW |
| Max Discharge Current | 200A |
| Max Parallel | 16 units (256kWh) |
| Protection | IP20 |
| Rated Capacity | 314Ah |
| Usable Energy | 15.2 kWh |
| Voltage Range | 44.8–57.6V |
| Weight | 110 kg |
5 / 10 Years manufacturer warranty. Contact us on WhatsApp for warranty claims.
Customer Reviews
–
0 reviews
- 5 star0
- 4 star0
- 3 star0
- 2 star0
- 1 star0
No reviews yet — be the first to share your experience.
Frequently Asked Questions
- Yes, the SAJ EK30 B3 is plug and play compatible with all SAJ H2 series hybrid inverters. No additional configuration is required.
- Up to 16 units can be connected in parallel, providing a maximum total capacity of 256kWh for large energy storage systems.
- The SAJ EK30 B3 has a cycle life of over 8000 cycles at 90% depth of discharge, typically lasting 15-20 years with normal use.
- The recommended depth of discharge is 95%, meaning 15.2kWh of the 16kWh total capacity is usable.
- The SAJ EK30 B3 comes with a 5 year standard warranty extendable to 10 years.
